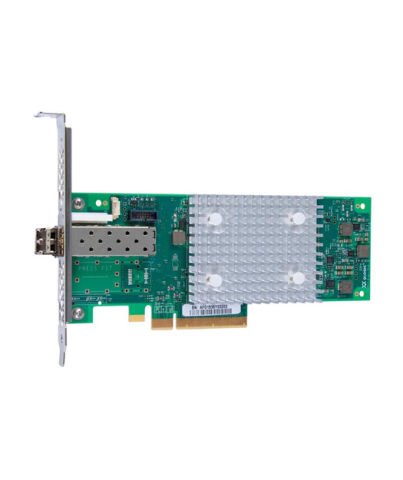

QLogic 16Gb Enhanced Gen5 FC Single-port HBA

LENOVO

QLogic 16Gb Enhanced Gen5 FC Single-port HBA

31.308,83 TL

GELİNCE HABER VER

TRUST

TRUST 19938 Sura Kablosuz Mouse - Gri

557,67 TL

GELİNCE HABER VER

TRUST

TRUST 22658 QURO SUNUM KUMANDASI (TV UYUMLU )

1.405,45 TL

GELİNCE HABER VER

TRUST

TRUST TRU23560 Qmax 30W Ultra-Fast USB-C & USB Car Charger with PD3.0 TRU23560

535,45 TL

GELİNCE HABER VER

TRUST

Trust 22136 Primo Powerbank 4400 -Kırmızı

251,49 TL

GELİNCE HABER VER

TRUST

TRUST NDURA USB TO LIGHTNING KABLO 1M

345,11 TL

341,66 TL

SEPETE EKLE

TRUST

Trust Primo 4400 mAh Pembe Taşınabilir Şarj Cihazı

251,49 TL

GELİNCE HABER VER

LENOVO

Lenovo Tab M10 TB-X505F ZA4G0072TR 32 GB 10.1'' Tablet

11.317,32 TL

GELİNCE HABER VER

Seçilen 0 ürün toplamı : 0.00 TL

TÜMÜNÜ SEPETE EKLE

QLogic 16Gb Enhanced Gen5 FC Single-port HBA QLogic 16Gb Enhanced Gen5 FC Single-port HBA Abstract The QLogic Enhanced Generation 5 (Gen 5) 16 Gb Fibre Channel (FC) Single and Dual-port Host Bus Adapters (HBAs) offer industry leading native FC performance with extremely low CPU usage with full hardware offloads. Enhanced Gen 5 FC technology provides advanced storage networking features capable of supporting the most demanding virtualized and private cloud environments, while fully leveraging the capabilities of high-performance 16 Gb FC (16GFC) and all-flash arrays (AFAs). This product guide describes the QLogic HBAs for Lenovo System x servers and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions. Change History Changes in the February 18, 2021 update: The adapter supports the FC-NVMe (NVMe over Fibre Channel) protocol - Key features section The server support tables are now automatically updated - Server support section Learn about the key features of the QLogic adapters Introduction The QLogic Enhanced Generation 5 (Gen 5) 16 Gb Fibre Channel (FC) Single and Dual-port Host Bus Adapters (HBAs) for Lenovo ThinkSystem and System x servers offer industry leading native FC performance with extremely low CPU usage with full hardware offloads. Enhanced Gen 5 FC technology provides advanced storage networking features capable of supporting the most demanding virtualized and private cloud environments, while fully leveraging the capabilities of high-performance 16 Gb FC (16GFC) and all-flash arrays (AFAs). Powerful management tools automate and simplify SAN provisioning to help reduce cost and complexity, while the unmatched 16 Gbps performance eliminates potential I/O bottlenecks in today’s powerful multiprocessor, multicore servers. The QLogic Enhanced Gen 5 16 Gb FC HBAs are shown in the following figure. Figure 1. QLogic Enhanced Gen 5 16 Gb FC Single-port and Dual-port HBAs ( shown without the included SFP+ modules ) Did you know? The QLogic StorFusion architecture delivers ultimate reliability to meet the needs of mission-critical enterprise applications with lower power and fewer CPU cycles, all while maintaining peak performance. The QLogic Enhanced 16 Gb FC HBAs are based on our 32 Gbps Architecture, which delivers higher IOPS and performance with lower power consumption compared to previous generation. QLogic QConvergeConsole provides unified, single-pane-of-glass management across generations of QLogic FC adapters. Part number information The following table lists the ordering information for the QLogic Enhanced 16 Gb FC HBAs. Table 1. Ordering information Part number Feature code Description 01CV750 ATZB QLogic 16Gb FC Single-port HBA (Enhanced Gen 5) 01CV760 ATZC QLogic 16Gb FC Dual-port HBA (Enhanced Gen 5) The part numbers for the QLogic Enhanced Gen 5 16 Gb FC HBAs include the following items: An FC HBA adapter with one or two 16 Gb (16/8/4 Gbps speeds) FC SW SFP+ installed 3U (standard) and 2U (low-profile) adapter brackets Publications package Fiber optic cables The following table lists the fiber optic cables that are available from Lenovo. Table 2. Fiber optic cables Part number Feature code Description LC-LC OM3 MMF Fiber Optic Cables 00MN499 ASR5 Lenovo 0.5m LC-LC OM3 MMF Cable 00MN502 ASR6 Lenovo 1m LC-LC OM3 MMF Cable 00MN505 ASR7 Lenovo 3m LC-LC OM3 MMF Cable 00MN508 ASR8 Lenovo 5m LC-LC OM3 MMF Cable 00MN511 ASR9 Lenovo 10m LC-LC OM3 MMF Cable 00MN514 ASRA Lenovo 15m LC-LC OM3 MMF Cable 00MN517 ASRB Lenovo 25m LC-LC OM3 MMF Cable 00MN520 ASRC Lenovo 30m LC-LC OM3 MMF Cable Key features The QLogic Enhanced Gen 5 16 Gb FC HBAs have the following features: Maximum performance with up to 1.3 million input/output operations per second (IOPS) to support larger server virtualization deployments and scalable cloud initiatives, and performance to match new multicore processors, SSDs/flash storage, and faster server host bus architectures. Independent function, transmit and receive buffers, an on-chip CPU, DMA channels, and a firmware image for each port enable complete port-level isolation, prevent errors and firmware crashes from propagating across all ports, and provide predictable and scalable performance across all ports. Support for NVMe over Fibre Channel (FC-NVMe). The adapters support low-latency access to scale out NVMe with full support for the FC-NVMe protocol. The adapters can simultaneously support FC-NVMe and FCP-SCSI storage traffic on the same physical port, enabling customers to migrate to NVMe at their own pace. Supports forward error correction (FEC) to enhance reliability of transmission and thereby performance. Industry-standard class-specific control (CS_CTL)-based frame prioritization Quality of Service (QoS) helps alleviate network congestion by prioritizing traffic for time-sensitive mission critical workloads for optimized performance. T10-PI data integrity with high performance offload provides end-to-end data corruption protection. Support for Message Signaled Interrupts eXtended (MSI-X) improves host utilization and enhances application performance. Fabric-assigned port worldwide name (FA-WWN) and fabric-based boot LUN discovery (F-BLD) pre-provisioning services allow servers to be quickly deployed, replaced, and moved across the SAN; the creation of zones, LUNs, and other services can be completed before the servers arrive on site. Using the Brocade ClearLink diagnostic port (D_Port) available on the Brocade Gen 5 switches, administrators can quickly run automated diagnostic tests to assess the health of links and fabric components. Read diagnostic parameters (RDP) feature provides detailed port, media, and optics diagnostics to easily discover and diagnose link-related errors and degrading conditions on any N_Port-to-F_Port link. Link cable beacon (LCB) enables administrators to visually identify both ends of a physical link by flashing HBA's LEDs, simplifying identification of the connection peers within server racks without tracing the cable. Single-pane-of-glass management across generations of QLogic FC adapters with QLogic QConvergeConsole (QCC). Deployment flexibility and integration with third-party management tools, including the VMware® vCenter™ and Brocade Network Advisor. Support for 16 Gb, 8 Gb, and 4 Gb FC devices. Comprehensive virtualization capabilities with support for N_Port ID Virtualization (NPIV). A common driver model allows a single driver to support all QLogic HBAs on a given OS. Reduce the number of cards, cables, and PCIe slots required. Exceptional performance per watt and price/performance ratios. Backward compatibility with existing 4GFC and 8GFC infrastructure, leveraging existing SAN investments. Allow application of SAN best practices, tools, and processes with virtual server deployments. Ensure data availability and data integrity. Boot from SAN capability reduces the system management costs and increases uptime. The following table compares features of QLogic Enhanced Gen 5 16 Gb, Gen 5 16 Gb, and 8 Gb FC HBAs. Table 3. QLogic Enhanced Gen 5 16 Gb, Gen 5 16 Gb, and 8 Gb FC HBAs feature comparison Feature Enhanced Gen 5 16 Gb FC Gen 5 16 Gb FC 8 Gb FC Part numbers 01CV750 01CV760 00Y3337 00Y3341 42D0501 42D0510 Host interface PCIe 3.0 x8 PCIe 3.0 x4, PCIe 2.0 x8 (x8 physical connector) PCIe 2.0 x8 IOPS performance 1.3 M IOPS 1.2 M IOPS 0.2 M IOPS (per port) 16 Gb FC SFP+ transceiver Yes Yes No 8 Gb FC SFP+ transceiver No No Yes 16 Gbps speed support Yes Yes No 8 Gbps speed support Yes Yes Yes 4 Gbps speed support Yes Yes Yes ClearLink support Yes Yes No Concurrent logins 2,048 2,048 2,048 Active exchanges 2,048 2,048 2,048 Technical specifications The QLogic Enhanced Gen 5 16 Gb FC HBAs have the following specifications: Based on the QLogic QLE2690 (single port) and QLE2692 (dual port) adapters Host interface: PCIe 3.0 x8 Ports: Single-port and dual-port SFP+ based adapters Link speed: Support for 16 Gb, 8 Gb and 4 Gb FC link speeds, which are automatically negotiated Data rate: 14.025 Gbps (1600 MBps), 8.5 Gbps (800 MBps), and 4.25 Gbps (400 MBps) autosensing (per port), with full duplex Performance: Up to 1,300,000 IOPS (up to 650,000 IOPS per port) Fibre Channel standards: FC-PI-5, FC-GS-2, FC-GS-3, SCSI-FCP, FCP-2, FC-TAPE Topology: Point-to-point and switched fabric Hot-pluggable 16 Gbps Fibre Channel SFP+ short wave optical transceivers (850 nm) with LC connectors (included with the adapters). Note: Other transceivers are not supported. Distance support: Operating at 16 Gbps: Up to 35 m on 50/125 µm OM2 Multi-Mode Fiber (MMF) Up to 100 m on 50/125 µm OM3 MMF Up to 125 m on 50/125 µm OM4 MMF Operating at 8 Gbps: Up to 21 m on 62.5/125 µm OM1 MMF Up to 50 m on 50/125 µm OM2 MMF Up to 150 m on 50/125 µm OM3 MMF Up to 190 m on 50/125 µm OM4 MMF Operating at 4 Gbps: Up to 70 m on 62.5/125 µm OM1 MMF Up to 150 m on 50/125 µm OM2 MMF Up to 380 m on 50/125 µm OM3 MMF Up to 400 m on 50/125 µm OM4 MMF Management software: The QLogic unified management application, QLogic QConvergeConsole (QCC), provides single-pane-of-glass management across generations of QLogic FC adapters. QLogic supports all major APIs for deployment flexibility and integration with third-party management tools, including the VMware vCenter and Brocade Network Advisor. 3. FirsatHesap, tüm elektronik ofis ekipmanları, telefonlar, yazıcılar ve akıllı ev cihazları ihtiyaçlarınız için en iyi online alışveriş destinasyonunuzdur. İndirimli fiyatlarla yüksek kaliteli ürünlerin çeşitliliğinin keyfini çıkarın. Yeni bir akıllı telefon, bir ofis yazıcısı veya konforunuzu artırmak için akıllı ev cihazı ihtiyacınız olsun, en yeni teknolojiler ve çekici tekliflerle ihtiyaçlarınızı karşılamak için buradayız. Şimdi size uygun olanı keşfedin ve özel fırsatlarımızdan faydalanın! FirsatHesap is your ultimate online shopping destination for all your electronic office equipment, phones, printers, and smart home device needs. Enjoy an exceptional shopping experience with our diverse range of high-quality products at discounted prices. Whether you're in need of a new smartphone, an office printer, or a smart home device to enhance your comfort, we're here to meet your needs with the latest technologies and enticing offers. Discover now what suits you and take advantage of our special deals! 01CV750
