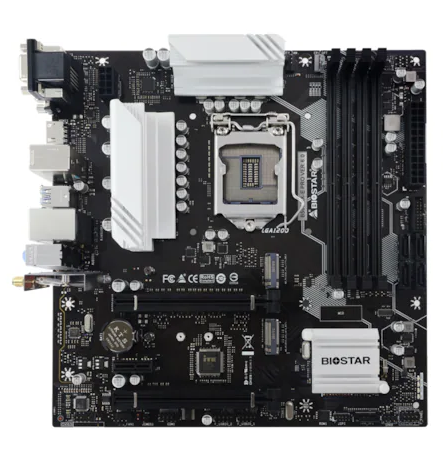

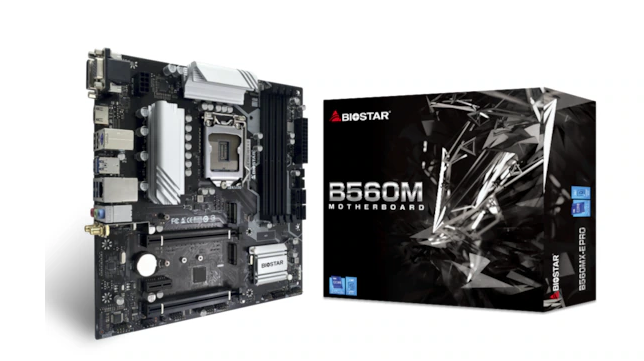

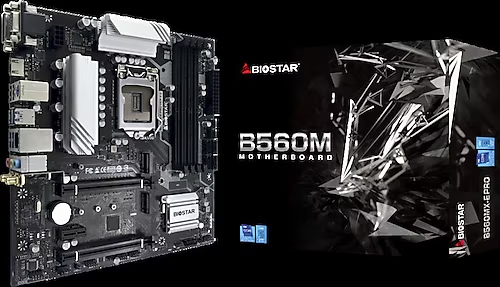

Biostar B560MX-E PRO Intel B560 LGA 1200 micro ATX

Marka: Biostar

Ürün adı: B560MX-E PRO

Ürün kodu: B560MX/E PRO

• Supports 10th/ 11th Generation Intel Core Processor
• Intel B560 single chip architecture
• Supports 4-DIMM DDR4- 2133/ 2400/ 2666/ 2800/ 2933/ 3200/ 3600(OC)/ 3733(OC)/ 3800(OC)/ 3866(OC)/ 4000+(OC) up to 128 GB Memory
• Supports PCIe 4.0
• Supports PCIe M.2 4.0 (64Gb/s)
• Supports Intel Optane Technology
• Supports USB 3.2 Gen1
• Supports WiFi 6 module (No WiFi 6 card included)
• Supports HDMI 1.4 4K resolution

Kullanım kılavuzu (pdf)

• Ürün özellikleri

Ürün özellikleri

İşlemci

İşlemci üreticisi

The manufacturer that produced the processor.

Intel

İşlemci soketi

Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering.

LGA 1200

İşlemcilerle uyumlu

A processor which is compatible with this device

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Maks. SMP işlemci sayısı

1

Hafıza

Destekli hafıza türü

Types of memory which can be used with the product.

DDR4-SDRAM

Bellek yuvalarının sayısı

4

Hafıza alanı türü

A memory slot

DIMM

Hafıza kanalları

Dual-channel

ECC

ECC means Error Correction Code

Non-ECC

Destekli hafıza saati hızı

Memory clock speed is the time it takes for a computer to complete basic operations. It refers to the computer's processing speed and is measured in hertz. It is however not such a reliable measure of a computer's speed as it doesn't take into account other factors like RAM and cache size.

2133,2400,2666,2933,3200,3600,3733,3800,3866 MHz

Maksimum bellek

Bilgisayarlarda kullanılan bu bellek saniyede yüzlerce bilgiyi günceller ve devreleri tazeler.

128 GB

Tamponsuz hafıza

Depolama yöneticisi

Desteklenen depolama sürücüsü tipleri

The type of storage drives the device is compatible with.

HDD & SSD

Desteklenen depolama sürücüsü arayüzleri

M.2,SATA III

Grafik

Paralel işleme teknolojisi desteği

Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally

Desteklenmez

HDCP

High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.

DirectX versiyonu

DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system.

12.0

Dahili I/O

USB 2.0 bağlayıcıları

The end of a cable with a USB 2.0 connector. USB 2.0 was released in April 2000 (now called "Hi-Speed")

2

USB 3.2 Gen 1 (3.1 Gen 1) konnektörleri

This is a connector (normally attached to a cable) for USB 3.0. USB 3.0 is the second major revision of the Universal Serial Bus (USB) standard for computer connectivity. First introduced in 2008

1

SATA III bağlantı sayısı

Serial ATA (Advanced Technology Attachment) (SATA) is a computer bus interface that connects host bus adapters to mass storage devices such as hard disk drives and optical drives. SATA III (revision 3.x) interface

4

S/PDIF çıkış bağlayıcı

Ön panel ses bağlayıcısı

Ön panel konektörü

ATX güç bağlayıcı (24-pin)

CPU fan bağlayıcı

Şasi fanı bağlayıcı sayısı

2

EPS güç bağlantısı (8-iğne)

COM bağlayıcı sayısı

1

TPM bağlayıcı

Arka panel I/O portları

USB 2.0 bağlantı noktası sayısı

Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed")

2

Arka panel I/O portları

USB 3.2 Gen 1 (3.1 Gen 1) Tip-A port sayısı

4

Ethernet LAN (RJ-45) port sayısı

Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.

1

PS/2 bağlantı noktaları

The number of PS/2 connectors for keyboards and mice. Its name comes from the IBM Personal System/2.

1

VGA (D-Sub) bağlantı noktası sayısı

Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.

1

HDMI port sayısı

The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor

1

HDMI versiyonu

1.4

DVI-D bağlantı noktası sayısı

This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device

1

WiFi-AP anten soketi

2

Ağ Bağlantıları

Ethernet LAN bağlantısı

An Ethernet LAN (Local Area Network) interface is present

Ethernet arayüz türü

Gigabit Ethernet

LAN kontrolörü

Realtek RTL8111H

Wi-Fi

Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Özellikler

Anakart yongası

The chipset connects the microprocessor to the rest of the motherboard.

Intel B560

Ses çipi

Realtek ALC897

Ses çıkış kanalı sayısı

An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels.

7.1 kanallar

PC sağlıklı gözleme

Fan, ısı, Voltaj

Bileşen

What this product is used as a part of (component for).

PC

Anakart form faktörü

Design of the motherboard (ATX

micro ATX

Analevha yonga kümesi ailesi

The category of motherboard chipset e.g. Intel

Intel

Desteklenen Windows çalışma sistemleri

Windows vesions wich can be used with the device.

Windows 10 x64

Genişletme yuvaları

PCI Express x1 (Gen 3.x) yuvası

1

PCI Express x16 delik

2

M.2 (M) yuvalarının sayısı

2

BIOS

Temiz CMOS bağlantı kablosu

Ağırlık & boyutlar

Genişlik

The measurement or extent of something from side to side.

244 mm

Derinlik

The distance from the front to the back of something.

244 mm

Paket içeriği

Pakete dahil kablolar

SATA

Sürücüler dahil

Ürünle gelen yazılım

Software distributed with another product such as a piece of computer hardware or other electronic device

BullGuard
