Digitus DS-30000-1 PCI Çevirici
Stok Durumu
Stokta Var
Stok Kodu
4016032309390
Kategori
Garanti Tipi
Türkiye Garanti
Garanti Süresi
24 Ay
Sipariş Bilgilendirmesi
Kampanya stoğu tükendiğinde güncel maliyetlere göre fiyat güncellenecektir.
Kargo Süreci
Gaziantep içi tüm siparişlerinizi özel araçlarımızla teslim ediyoruz. Şehir dışına olan siparişlerinizde ise Ücretsiz Kargo hizmetimizle adresinize ulaştırııyoruz.
Ürünlerimiz ile ilgili fiyat talepleriniz için lütfen aşağıdaki formumuzu doldurunuz.

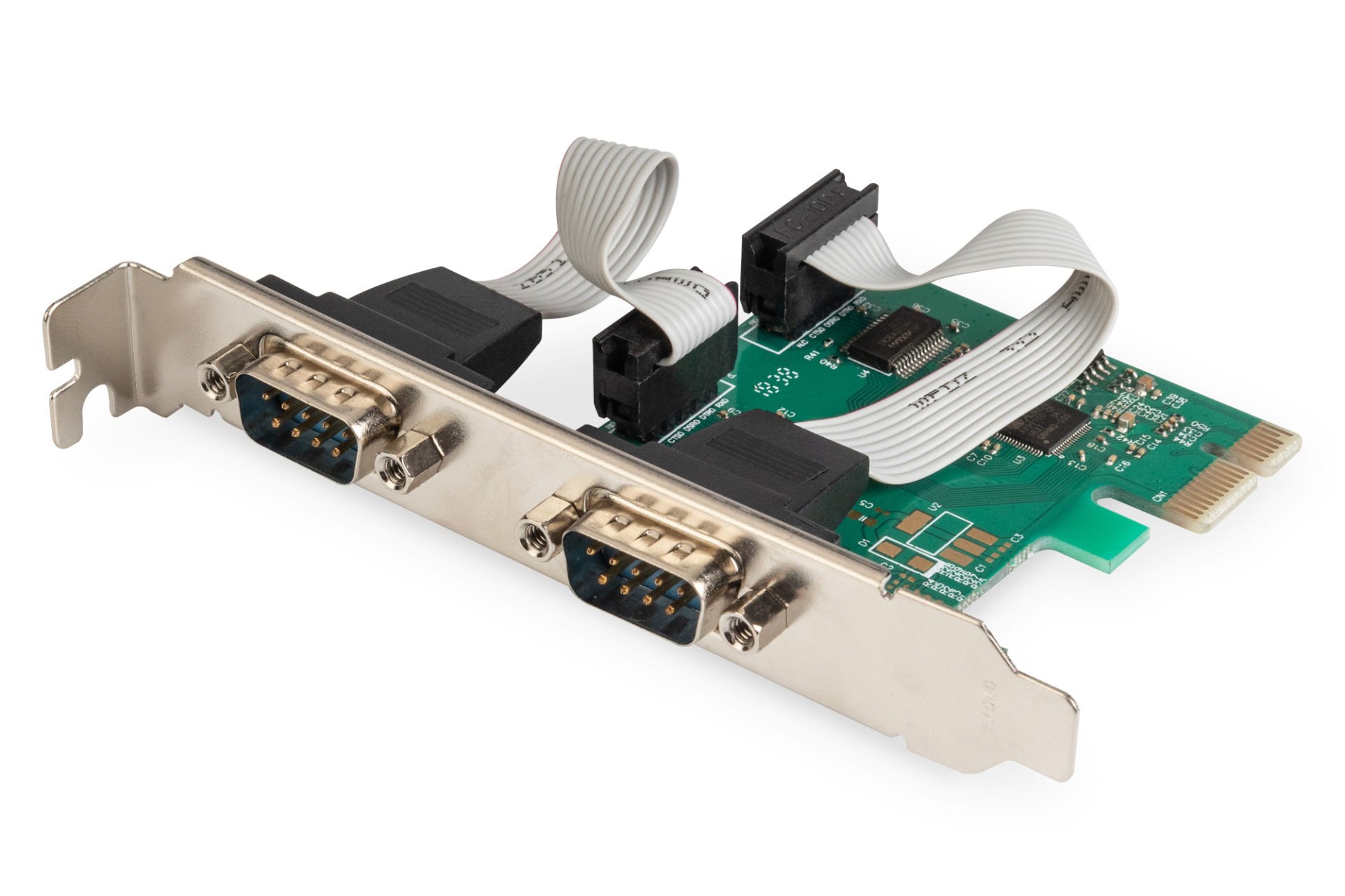

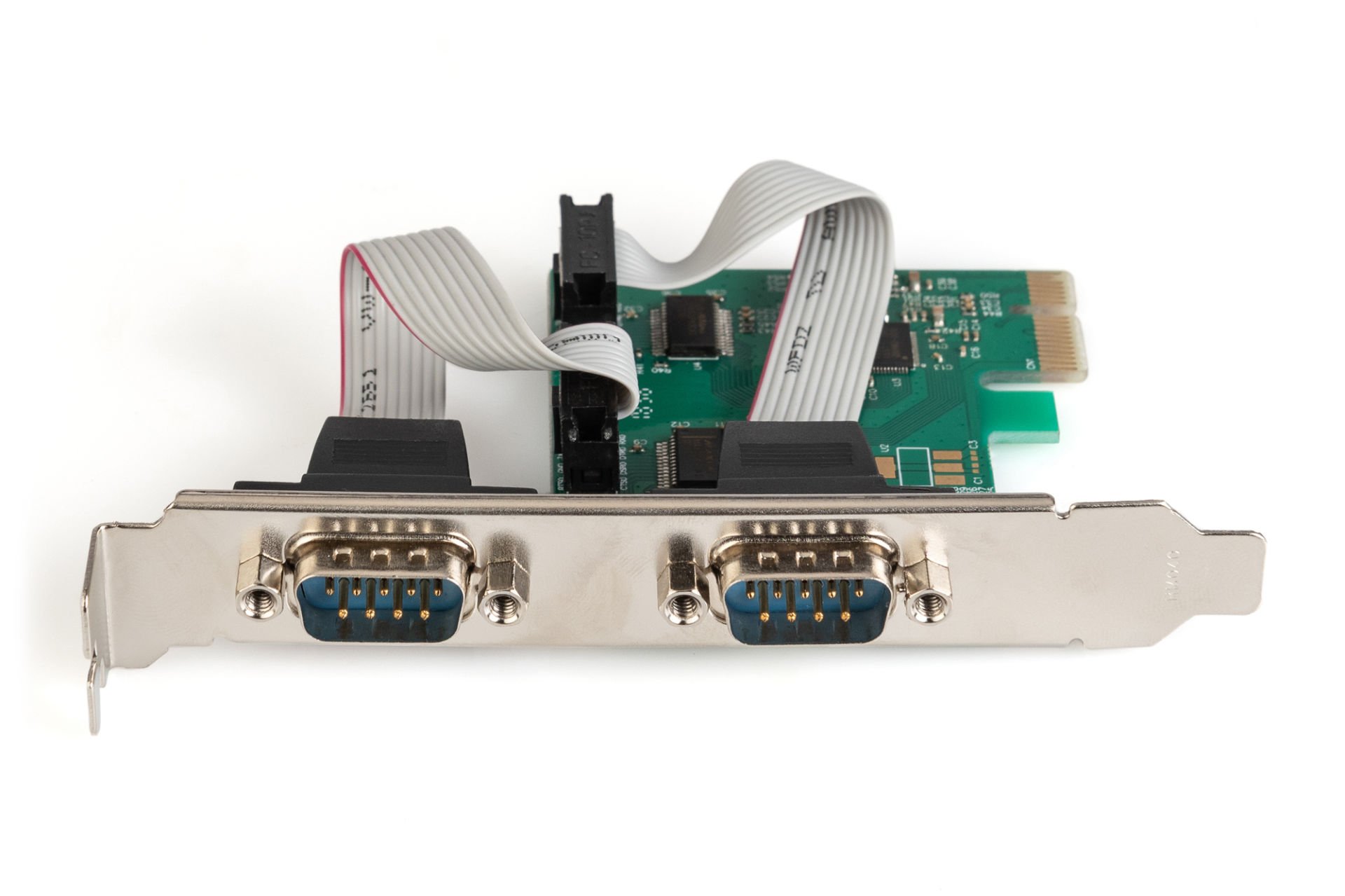

Digitus DS-30000-1 PCI Çevirici



Description
This PCI Express based serial Add-On card allows you to turn a PCI Express slot into two RS232 (DB9) serial ports. Based on a native single chip design reduces the load applied to the CPU by as much as 48% over conventional serial cards.
Technical details
- 2 x DSUB 9, serial ports, male, UART 16C950
- Chipset: AX99100
- Data transfer rate up to 1,5 Mbps
- Compliant with PCI Express base specification 2.0
- Compliant with PCI power management 1.2
- Operating temperature: 0 °C - 70 °C
- Operating humidity: 0% - 85% RH (non-condensing)
- Supports Windows 10, 8.1, 8, 7, Vista, XP, macOS X and Linux
Package content
- 2-Port Serial Interface Card, PCIe
- Low profile bracket
- Manual
- Driver CD
Downloads and Certificates
Certificate
Datasheet
Driver
Logistics
Number (pcs) |
Weight (kg) |
Depth (cm) |
Width (cm) |
Height (cm) |
cm³ | |
---|---|---|---|---|---|---|
Packaging Unit Carton | 40 | 6,00 | 40,00 | 40,00 | 37,00 | 59.200,00 |
Packaging Unit Inside | 1 | 0,15 | 6,00 | 18,00 | 18,00 | 1.944,00 |
Packaging Unit Single | 1 | 0,15 | 6,00 | 18,00 | 18,00 | 1.944,00 |
Product number: DS-30000-1
EAN: 4016032309390
Serial I/O RS232 PCIexpress Add-On card 2-port, incl. low profile, chipset:ASIX99100
Perfect for connecting serial modems, PDAs, digital cameras, printers, ISDN terminal adapters and many more
- Data transfer rate up to 128.000 bps
- Compliant with PCI Express base specification 2.0
- 2 x DSUB 9, serial ports, male, UART 16C950
Serial I/O RS232 PCIexpress Add-On card 2-port, incl. low profile,
chipset:ASIX99100
This PCI Express based serial Add-On card allows you to turn a PCI
Express slot into two RS232 (DB9) serial ports. Based on a native single
chip design reduces the load applied to the CPU by as much as 48%
over conventional serial cards.
Perfect for connecting serial modems, PDAs, digital cameras,
printers, ISDN terminal adapters and many more
• 2 x DSUB 9, serial ports, male, UART 16C950
• Chipset: AX99100
• Data transfer rate up to 1,5 Mbps
• Compliant with PCI Express base specification 2.0
• Compliant with PCI power management 1.2
• Operating temperature: 0 °C - 70 °C
• Operating humidity: 0% - 85% RH (non-condensing)
• Supports Windows 10, 8.1, 8, 7, Vista, XP, macOS X and Linux
Package contents
• 2-Port Serial Interface Card, PCIe
• Low profile bracket
• Manual
• Driver CD
