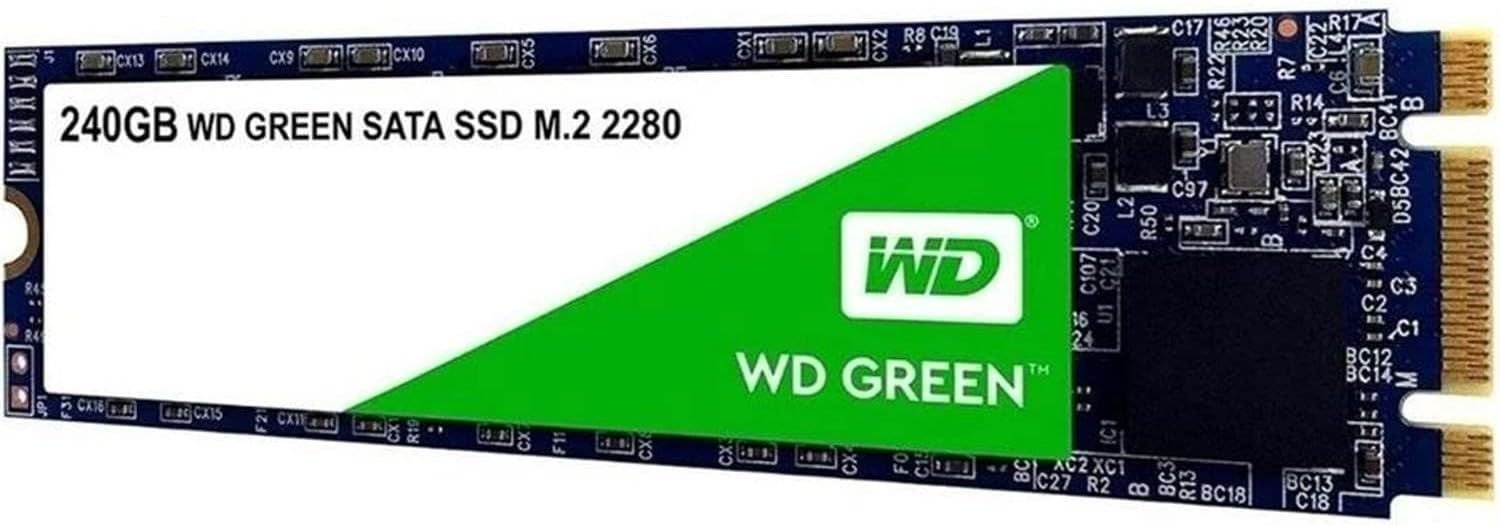

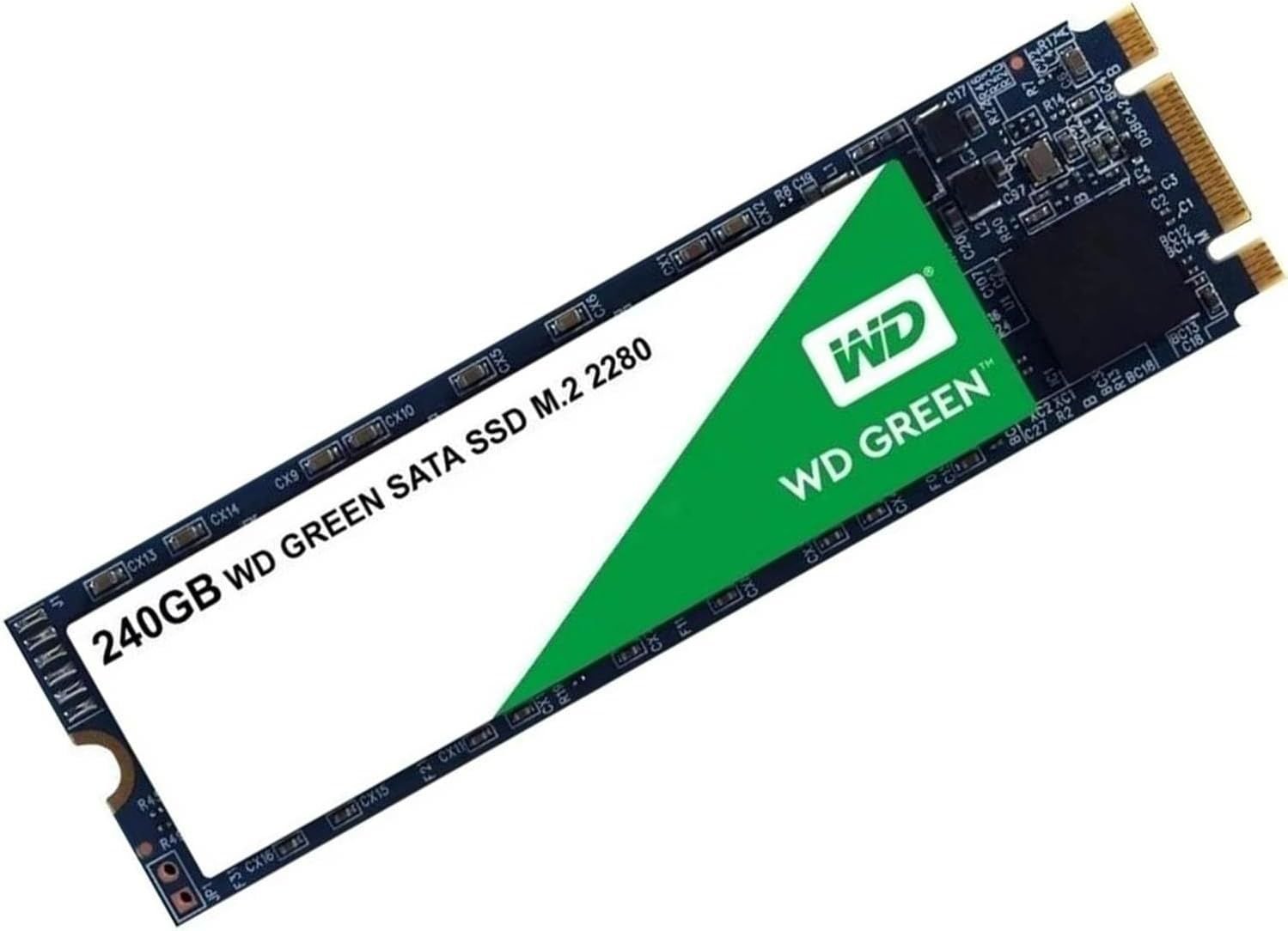

WD WDS240G2G0B 240GB m.2 2280 SATA Internal Solid State Drive

                                                                 WD WDS240G2G0B 240GB m.2 2280 SATA Internal Solid State Drive


Product Highlights
• SLC (single-level cell) caching boosts write
performance to quickly perform everyday tasks.
• Shock-resistant and WD F.I.T. Lab™ certified for
compatibility and reliability.
• Ultra-low power-draw so you can use your
laptop PC for longer periods of time.
• Available in 2.5”/7mm cased and M.2 2280 form
factors to accommodate most PCs.
• The free, downloadable Western Digital® SSD
Dashboard* lets you easily monitor the status of
your drive.
• Includes a 3-year limited warranty1 so upgrading
your storage is worry-free.

Specifications
WD Green™ SATA SSD
PRODUCT BRIEF SATA SSD
2TB2 1TB2 480GB2 240GB2
Model Number3
WD Green SATA SSD 2.5”/7mm
cased
WDS200T2G0A WDS100T3G0A WDS480G3G0A WDS240G3G0A
WD Green SATA SSD M.2 2280 WDS480G3G0B WDS240G3G0B
Interface4
WD Green SATA SSD 2.5”/7mm
cased
SATA III 6 Gb/s SATA III 6 Gb/s SATA III 6 Gb/s SATA III 6 Gb/s
WD Green SATA SSD M.2 2280 SATA III 6 Gb/s SATA III 6 Gb/s
Performance5 [4KB QD32]
Sequential Read up to (MB/s) 545 545 545 545
Power
Avg. Active Power (mW)6 90 80 60 60
Max Read Operating (mW) 2,700 2,800 1,700 1,700
Max Write Operating (mW) 3,100 2,800 1,700 1,700
Slumber (mW) 60 30 26 26
DEVSLP (mW) 15 15 10 10
Reliability
MTTF7 Up to 1.0M hours Up to 2.0M hours Up to 2.0M hours Up to 2.0M hours
Environmental
Operating Temperatures 0°C to 70°C 0°C to 70°C 0°C to 70°C 0°C to 70°C
Non-operating Temperatures -55°C to 85°C -55°C to 85°C -55°C to 85°C -55°C to 85°C
Operating Vibration 5.0 gRMS, 10–2000 Hz 5.0 gRMS, 10–2000 Hz 5.0 gRMS, 10–2000 Hz 5.0 gRMS, 10–2000 Hz
Non-operating Vibration 4.9 gRMS, 7–800 Hz 4.9 gRMS, 7–800 Hz 4.9 gRMS, 7–800 Hz 4.9 gRMS, 7–800 Hz
Shock 1,500 G @ 0.5 msec half sine 1,500 G @ 0.5 msec half sine 1,500 G @ 0.5 msec half sine 1,500 G @ 0.5 msec half sine
Certifications FCC, UL, TUV, KC, BSMI, VCCI, CE,
Morocco, RCM, UKCA
FCC, UL, TUV, KC, BSMI, VCCI, CE,
Morocco, RCM, UKCA
FCC, UL, TUV, KC, BSMI, VCCI, CE,
Morocco, RCM, UKCA
FCC, UL, TUV, KC, BSMI, VCCI, CE,
Morocco, RCM, UKCA
Limited Warranty1 3 years 3 years 3 years 3 years
Physical Dimensions
Size: 2.5”/7mm cased 100.50mm x 69.85mm x 7.00mm 100.50mm x 69.85mm x 7.00mm 100.50mm x 69.85mm x 7.00mm 100.50mm x 69.85mm x 7.00mm
Size: M.2 2280 80mm x 22.0mm x 1.5mm 80mm x 22.0mm x 1.5mm
Weight: 2.5”/7mm cased 32.7g, ± 0.5g 32.7g, ± 0.5g 36.2g, ± 0.5g 36.2g, ± 0.5g
Weight: M.2 2280 5.10g, ± 0.5g 5.10g, ± 0.5g
Specifications are subject to change without notice
1 See http://support.westerndigital.com for regional specific warranty details.
2 1GB = 1 billion bytes and 1TB = 1 trillion bytes. Actual user capacity may be less depending on
operating environment.
3 Not all products may be available in all regions of the world.
© 2024 Western Digital Corporation or its affiliates. All rights reserved. Western Digital, the Western Digital design, the Western Digital logo and WD Green are
registered trademarks or trademarks of Western Digital Corporation or its affiliates in the U.S. and/or other countries. All other marks are the property of their respective
owners. Pictures shown may vary from actual products. References in this publication to Western Digital products, programs, or services do not imply that they will be
made available in all countries. Product specifications provided are sample specifications that are subject to change and do not constitute a warranty. Please visit our
website, http://www.westerndigital.com for additional information on product specifications.
5601 Great Oaks Parkway
San Jose, CA 95119, USA
www.westerndigital.com
02–00-WW-04–00040-AA02 January 2024
4 Backward-compatible to SATA II and I.
5 1 MB/s = 1 million bytes per second. Based on internal testing; performance may vary
depending upon host device, usage conditions, drive capacity, and other factors.
6 Measured using the MobileMark™ 2014 benchmark with DIPM (Device Initiated Power
Management) enabled (Power measurements at 23°C).
7 MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing
(Telcordia SR-332, GF, 25°C). MTTF is based on a sample population and is estimated by
statistical measurements and acceleration algorithms. MTTF does not predict an individual
drive’s reliability and does not constitute a warranty
